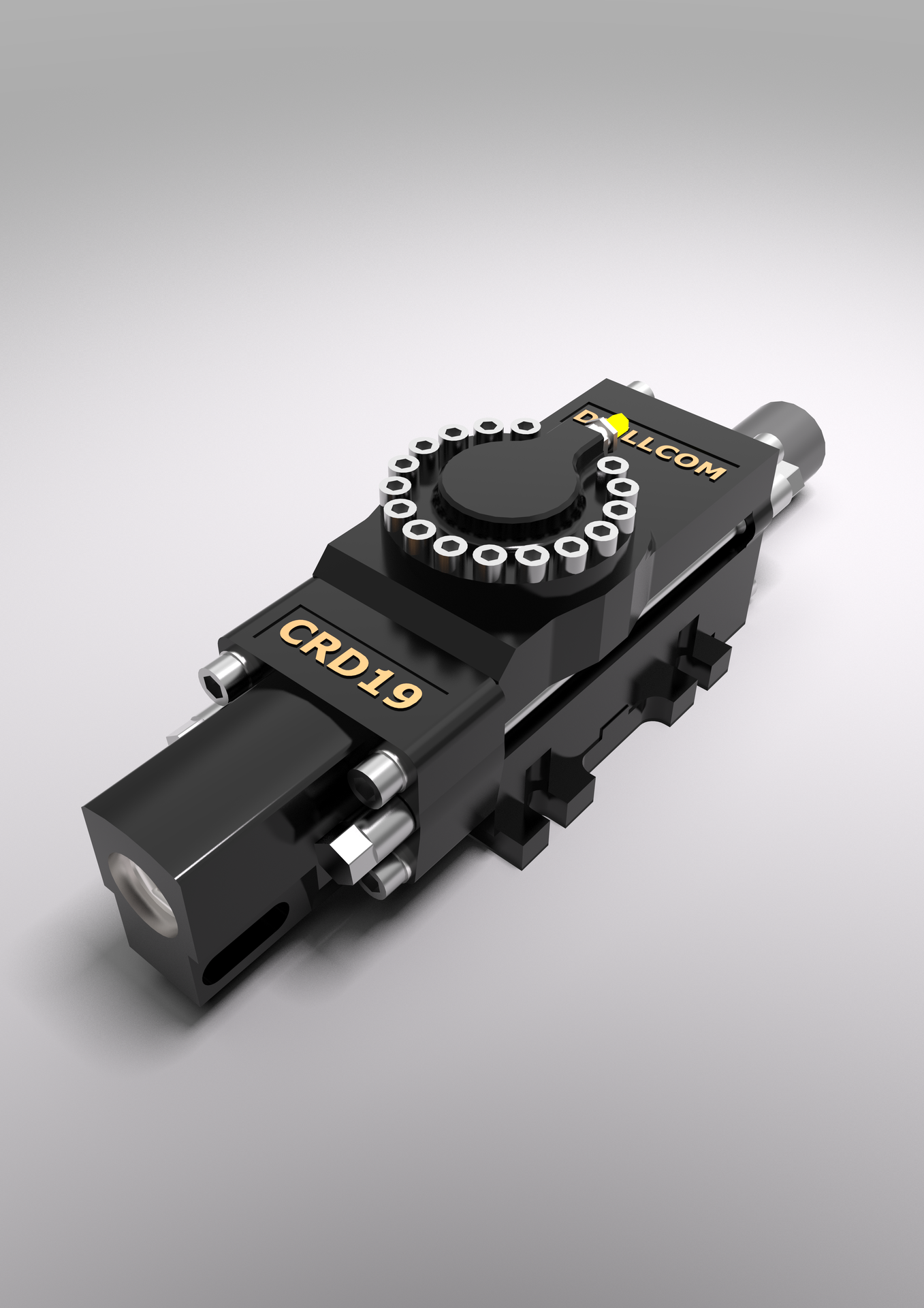

CRD19

Compact
Rock Drill

The CRD19 designed for drilling equipment is a compact and efficient solution for quarrying.

More information

MAIN DIMENSIONS & TECHNICAL DATA

Download .PDF

Hole Size ​ ​ ​ ​ ​ ​ ​ ​ ​17 - 29 mm

Impact Power Class ​ ​ ​ ​ ​ ​2.5 kW

Accumulator Pressure ​ ​ ​ ​ ​ ​ ​40 bar

Weight ​ ​ ​ ​ ​ ​ ​ ​ ​40 kg

Impact Frequency ​ ​ ​ ​ ​ 70 Hz

Impact Kinetic Energy ​ ​ ​ ​ ​ ​35 J

Impact Oil Flow ​ ​ ​ ​ ​ ​ ​ ​25 - 28 L/min

Impact Pressure ​ ​ ​ ​ ​ ​ ​ ​130 bar max

MOOTTORI ​

Rotation Speed ​ ​ ​ ​ ​ ​ ​ ​ ​400 rpm max

Rotational Torque ​ ​ ​ ​ ​ ​ ​ 30 Nm

Rotation Oil Flow​ ​ ​ ​ ​ ​ ​ ​7 L/min

Rotation Pressure ​ ​ ​ ​ ​ ​ ​ ​120 bar max

Shank ​ ​ ​ ​ ​ ​    19x108 mm

Shank Lubrication ​​ ​ ​ ​ ​ ​ ​ 4 bar, 100 L/min

Flushing: Water Pressure & Flow ​ ​ ​ ​ ​   5 bar max, 10 L/min

Flushing: Air Pressure & Flow ​ ​ ​​ ​ ​ ​  6 bar max, 400 L/min
